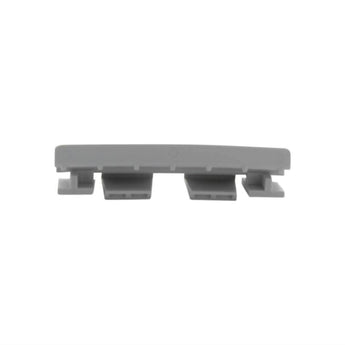

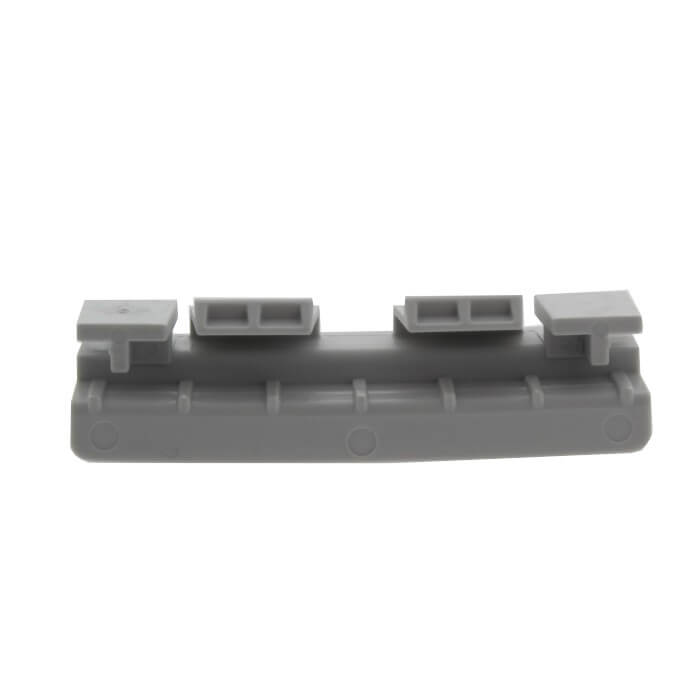

Philips DreamStation CPAP Humidifier Flip Lid Latch

DreamStation Humidifier Replacement Flip Lid Latch by Philips Respironics

This Replacement Flip Lid Latch is designed exclusively for the DreamStation Humidifier . It is not compatible with the DreamStation 2.

Installation Instructions

1.  Remove the Water Chamber Assembly.
2.  Pull the Back Panel away from the Humidifier while lifting up on the top to release the Back Panel tab from the latch area.
3. Remove the Back Assembly and open the Flip Lid.

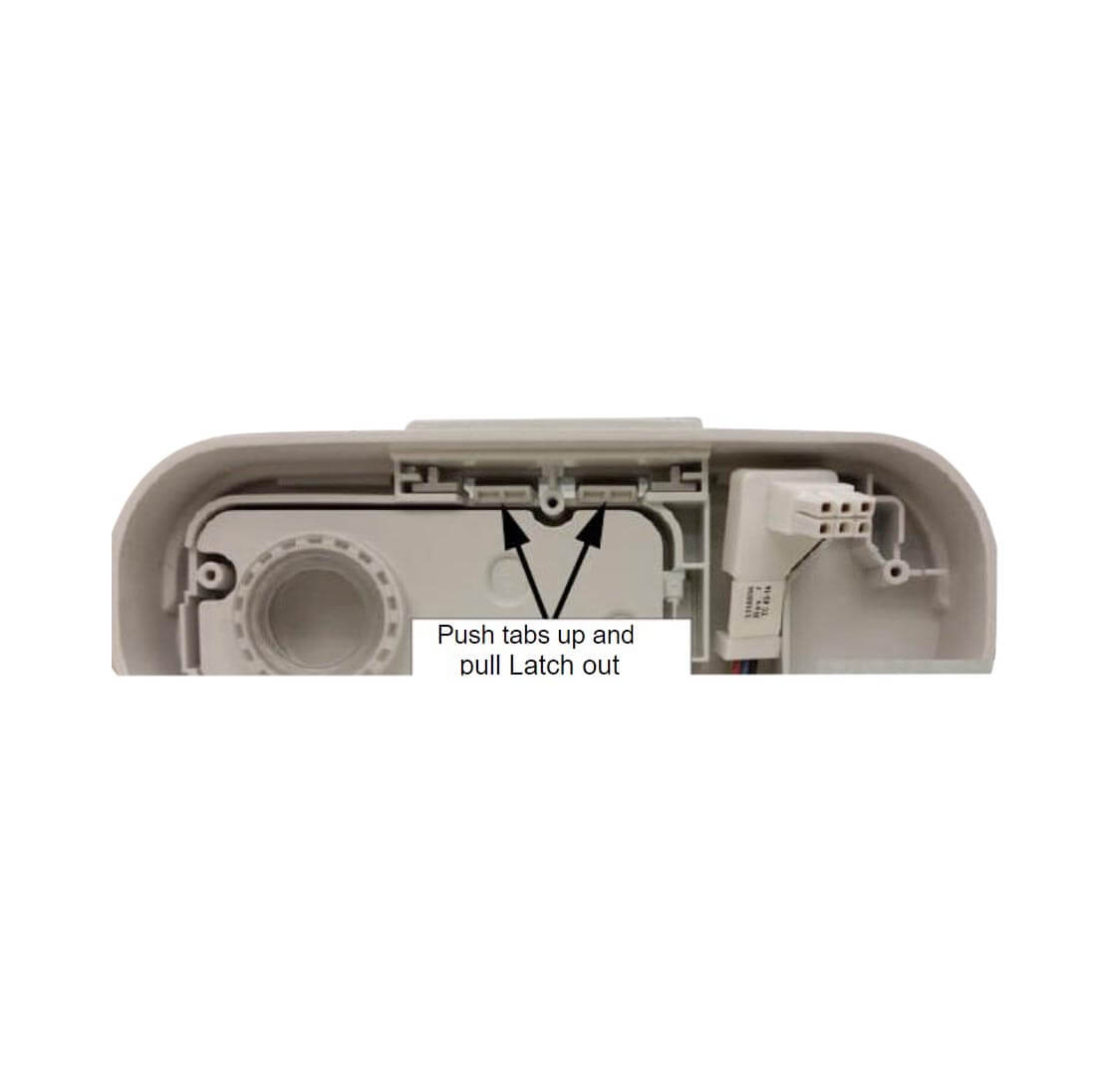

4. Push up on the 2 Latch tabs and pull the Latch out of the Humidifier Assembly.
5. Align the Latch into the Bottom Assembly grooves.
6. Push up on the Latch tabs while pushing the Latch until it clicks into place.
7. Verify the Flip Lid latches into place.
8. Align the Back Panel onto the bottom Assembly.
9. Secure the Back Panel with the four screws.
10. Verify the Back Panel is fully seated and secure.
